菌形通风筒

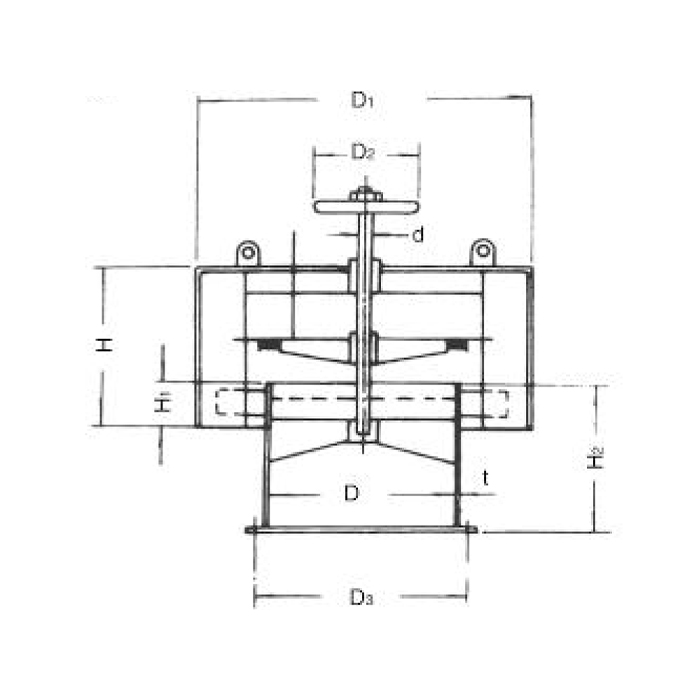

C型--带有风雨密盖活动式通风帽

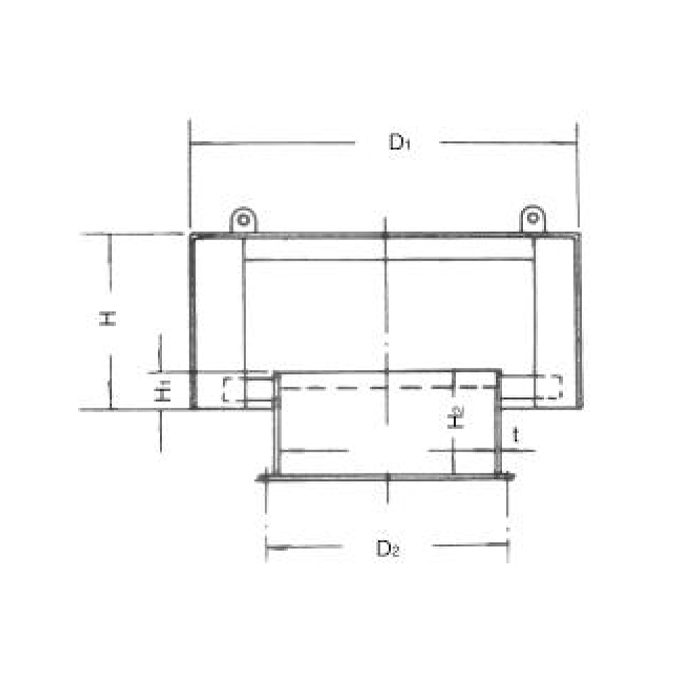

D型--固定式通风帽
|
|
| C型--带有风雨密盖活动式通风帽 | D型--固定式通风帽 |
|
型 号 |
通孔尺寸 |
D: |
D₂ |
D₃ |
H |
H: |
H₂ |
d |
t |
重 量 kg |
t |
重 量 kg |
|
c |
400 |
710 |
280 |
445 |
350 |
105 |
250 |
T36×6-左 |
5 |
113.3 |
6 |
115.2 |
|
450 |
800 |
280 |
510 |
375 |
105 |
250 |
T36×6-左 |
5 |
136.2 |
6 |
138 |
|
|
500 |
890 |
320 |
560 |
405 |
105 |
250 |
T40×6-左 |
5 |
152 |
8 |
168 |
|
|
550 |
980 |
320 |
610 |
435 |
105 |
300 |
T40×6-左 |
6 |
198 |
8 |
207.7 |
|
|
600 |
1060 |
320 |
660 |
470 |
120 |
300 |
T40×6-左 |
6 |
201 |
8 |
208 |
|
|
700 |
1240 |
320 |
760 |
520 |
150 |
300 |
T40×6-左 |
6 |
254 |
8 |
263.8 |
|
|
800 |
1410 |
320 |
860 |
560 |
180 |
350 |
T40×6-左 |
6 |
341 |
8 |
254 |
|
|
900 |
1580 |
360 |
970 |
600 |
200 |
350 |
T44×6-左 |
6 |
425 |
8 |
440 |
|
|
1000 |
1760 |
360 |
1070 |
640 |
250 |
350 |
T44×6-左 |
8 |
548 |
|
|
|
|
1100 |
1930 |
360 |
1170 |
680 |
250 |
350 |
T44×6-左 |
8 |
624 |
|
|
|
|
1200 |
2100 |
360 |
1280 |
720 |
250 |
350 |
T44×6-左 |
8 |
725.4 |
|
|
|
|
D |
400 |
710 |
|
445 |
350 |
105 |
210 |
|
5 |
78.8 |
6 |
80.8 |
|
450 |
800 |
|
510 |
375 |
105 |
210 |
|
5 |
96.8 |
6 |
98.7 |
|
|
500 |
890 |
|
560 |
405 |
105 |
210 |
|
5 |
114.6 |
8 |
122 |
|
|
550 |
980 |
|
610 |
435 |
105 |
250 |
|
6 |
140.5 |
8 |
147 |
|
|
600 |
1060 |
|
660 |
470 |
120 |
250 |
|
6 |
162.3 |
8 |
169.4 |
|
|
700 |
1240 |
|
760 |
520 |
150 |
270 |
|
6 |
209 |
8 |
217.4 |
|
|
800 |
1410 |
|
860 |
550 |
180 |
300 |
|
6 |
267.7 |
8 |
279.2 |
|
|
900 |
1580 |
|
970 |
600 |
220 |
320 |
|
6 |
320 |
8 |
334 |
|
|
1000 |
1760 |
|
1070 |
640 |
250 |
370 |
|
8 |
444 |
|
|
|
|
1100 |
1930 |
|
1170 |
680 |
250 |
370 |
|
8 |
537 |
|
|
|
|
1200 |
2100 |
|
1280 |
720 |
250 |
370 |
|
8 |
623 |
|
|
标记示例
通孔尺寸为700mm的D型船用菌形通风简：
船用菌形通风简 D700 GB3887-83
